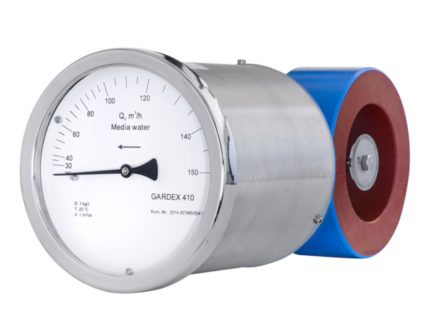

Gardex
Robust baffle flow meter for flexible directions of flow
The Gardex flow meter is a robust measurement and monitoring device. It is equally suitable for liquid and gas measured media and can be used for any direction of flow.
The measurement is shown on a scale and can be provided optionally via a contact switch and electric output.

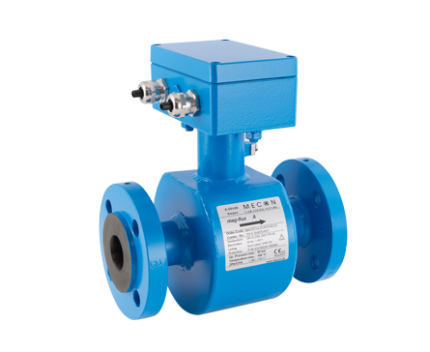

mag-flux® A
Magnetic-inductive sensor for a wide range of applications
Our magnetic-inductive sensors (MID) are precision measurement devices and suitable for linear flow measurement of almost all electrically conductive liquids, as well as slurries, pulps and pastes. Thanks to the magnetic field’s properties, these devices can be used for flow speeds up to 10 m/s (32.8 ft/s) and for a minimum conductivity of 20 / 3 µS/cm.
The flow meter consists of a sensor and a corresponding measuring transducer. They are available both in separate and in compact designs.

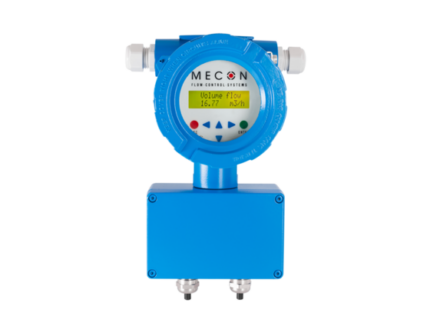

mag-flux® M1
Magnetic-inductive measuring transducer with synchronised d.c. field
The mag-flux® M1 measuring transducer was developed specifically for use with the magnetic-inductive mag-flux-series flow sensors. With an optionally available operating module and a local display, the measuring transducer is easy to adapt to customer requirements.
The mag-flux® M1 is a microprocessor-controlled, programmable measuring transducer and can be adapted to the user requirements. While the fundamental configuration, e.g. sensor calibration with parameterisation of these values in the measuring transducer is performed in the plant, the customer can make further settings and required changes at any time. The measuring transducer records and processes the measurement signals from the corresponding mag-flux-series magnetic-inductive sensor. It is suitable for medium flow speeds up to 10 m/s.
The mag-flux® M1 measuring transducer is available in both separate and compact designs. This applies in particular when combined with the mag-flux A.
The mag-flux® M1 is designed with communication capabilities. With an optionally available additional module, it can also be used with the HART® protocol.

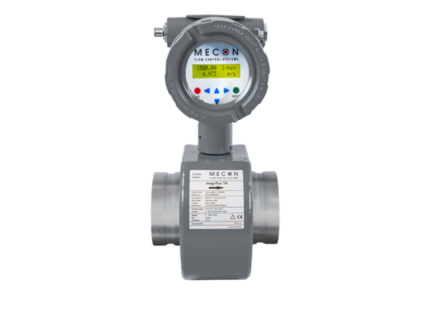

mag-flux® T4
Magnetic-inductive fire pump meter specifically for use in stationary fire safety applications – Sprinkler systems
MECON has upgraded flow meters for sprinkler system applications with the mag-flux® T4, offering a solution with a fast 16-bit microcontroller and an electrical 4 - 20 mA output. As a result, the mag-flux® T4 is easy to integrate in existing remote monitoring systems, and the measurements can be evaluated in a control centre. For installation, the device offers an impressive range of connection options – e.g. flange, threaded or groove connections. In fact, the mag-flux® T4 fire pump test meter is the only product with a VdS-certificated groove connection. The measurement accuracy is ±0.5%.
N4

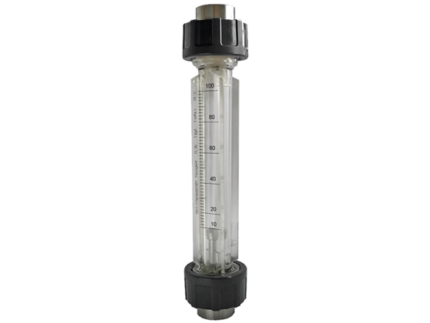

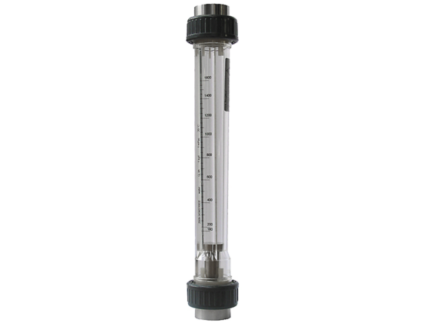

Trogflux
Plastic float-type flow meter
The high-grade transparent plastic measurement cones used allow the flow value to be read directly at media temperatures up to +60 °C . The universal female thread and adhesive connections permit problem-free process integration.
The device can also optionally be used for flow monitoring if equipped with one or more contact switches.

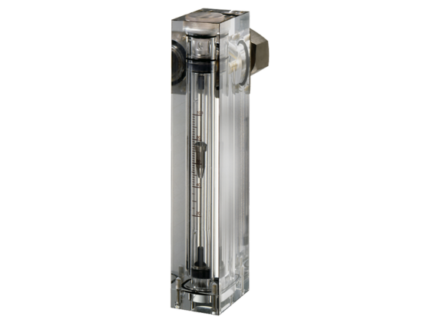

Trogflux short version
Float-type flow meter with a particularly compact design (short version)
The Trogflux (short version) is ideal for applications in tight spaces. If the device is equipped with one or more (optional) contacts, it can also be used for flow monitoring.
Standard scales are available for liquids with a density of 1 kg/l (62.43 lb/ft). The devices are custom-scaled to customer requirements for all other media to be measured.

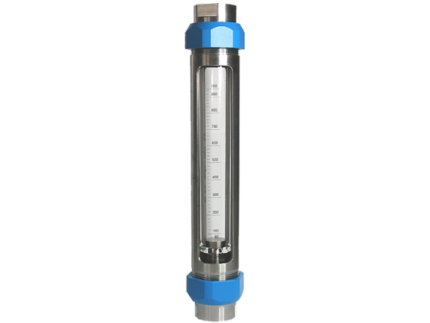

Tubux M30
Universal float-type flow meter with glass measuring cone
Tubux M30-type flow meters are suitable for measuring clear liquids and gases. In the Tubux M30’s structural design, the glass measuring cone is protected by a stainless steel pipe with an integrated window. The uniform structure permits various standard-compliant connection concepts.
For more demanding applications, devices can also be equipped with one or more contact switches. On request, percentage or 2 mm scales are available for these device types.
Turbo-Lux®
Orifice flow meter with VdS certification for stationary sprinkler systems in fire safety applications
The Turbo-Lux® orifice flow meter with VdS certification for flow measurement in stationary sprinkler systems. Together with the practical case for the bypass flow meter, the Turbo-Lux®-series products are the devices of choice for inspection firms. The required certificate from VdS Schadenverhütung GmbH has been secured. Since 1977, companies have relied on the VdS-certified technology of the Turbo-Lux® series.

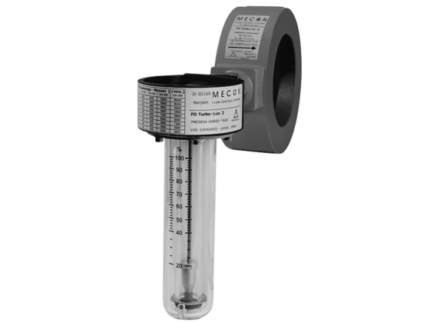

Turbo-Lux® 2
Fire pump test meter with VdS certification, intermediate flange version for stationary fire extinguishing systems
The Turbo-Lux® 2 orifice flow meter is the second generation of the Turbo-Lux® device family and is also available as an intermediate flange version. In addition to the familiar easy installation and extremely precise measurement accuracy, the VdS-certified Turbo-Lux® 2 impresses with lower purchasing costs compared with its predecessor.

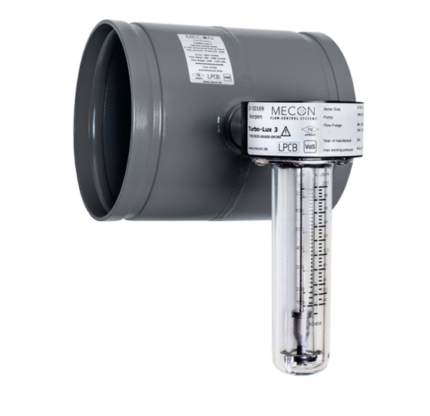

Turbo-Lux® 3
Fire pump test meter with three certifications: FM, LPCB and VdS
The Turbo-Lux® 3 is the world’s first and only fire pump test meter certificated by all three test institutes (FM, LPCB and VdS). Large corporations and global companies in particular can benefit accordingly from a uniform international solution for their fire safety systems.
Special becomes standard – now all dimensions are available with shorter inlet and outlet sections.
