Gardex

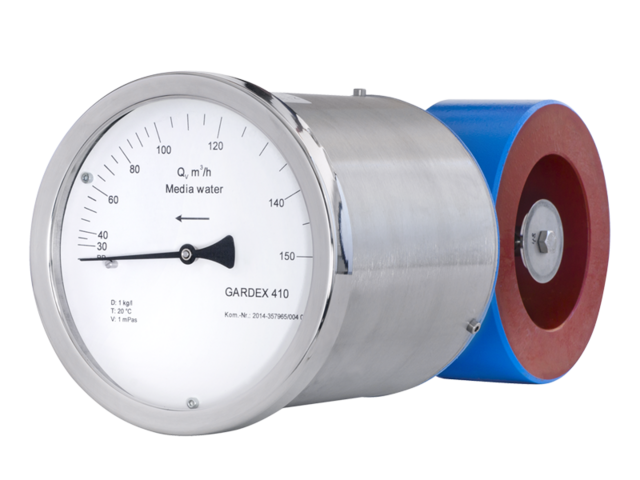

Robust baffle flow meter for flexible directions of flow

The Gardex flow meter is a robust measurement and monitoring device. It is equally suitable for liquid and gas measured media and can be used for any direction of flow.

The measurement is shown on a scale and can be provided optionally via a contact switch and electric output.

Applications:

The Gardex baffle plate flow meters are suitable for measuring a wide range of liquids and gases in closed pipelines due to their all-metal design.

The devices are particularly suitable for measuring:

Water
Liquids
Corrosion protection agents and lubricants
Saturated and overheated steam
Industrial gases

The Gardex baffle plate flow meter is used in the following industries:

Chemicals
Building services equipment, air conditioning, heating
Oil and gas

Advantages of the baffle plate flow meter:

Very robust design
Product scale for liquids and gases
Simple installation with sandwich structure
Robust construction
Can be equipped with a limit contact and potentiometer
Suitable for flexible directions of flow
Liquid temperatures up to max. +250 °C

Measuring tube connections:

DIN EN 1092-1: DN 25 … DN 400
ANSI B16.5: 1″ … 16″
